Custom MIM Components: From Prototype to Mass Production
Time: 2026-09-14 Source：Harber MIM Parts Manufacturer Media Centre
Many product engineers and procurement teams face a critical challenge: turning a complex miniature metal‑part CAD drawing into consistent, high‑yield serial‑production MIM components. MIM (Metal Injection Molding) excels for small intricate geometries, but successful projects require careful navigation across prototyping, design validation, tooling, process tuning, and full‑scale mass‑manufacturing. Poor transition from prototype to volume output frequently results in sinter distortion, inconsistent mechanical performance, high scrap rates, and costly mold rework.
This article walks you through the full end‑to‑end custom MIM component workflow, explains typical transition pitfalls, core technical capabilities, industry‑specific use‑cases, quality‑control standards, and practical sourcing guidance for custom MIM projects.
Customer Project Overview
Customer Background
Global OEM product developer across consumer electronics, automotive, power‑tool or medical‑auxiliary hardware sectors.
Core Challenge
Prototyped MIM samples meet lab test requirements; however, mass‑production batches suffer unstable dimensional tolerances, fluctuating hardness, high reject rates, and unpredictable lead‑times when scaling up.
Project Target
Achieve smooth hand‑off from prototype sampling to stable serial production, guarantee consistent part performance, lower scrap‑related costs and meet scheduled product launch timelines.
Expected Deliverables
Validated first‑article samples, locked‑in manufacturing parameters, traceable batch inspection reports, and cost‑competitive high‑volume MIM components.
Common Pitfalls When Scaling MIM From Prototype to Mass‑Production
Prototype samples only represent small‑batch lab conditions. Many issues remain hidden during sampling and surface once production scales up:
Sintering shrinkage deviation: Small trial furnace loads behave differently compared with full‑capacity mass‑production furnace runs, triggering dimensional drift.
Un‑validated heat‑treatment parameters: For 17‑4PH, 440C MIM grades, aging / quenching‑tempering recipes working for prototypes may produce inconsistent hardness across large‑batch runs.
Ignoring DFM feedback at sampling phase: Wall‑thickness imbalance, sharp transitions or unsupported thin features pass prototype inspection yet create massive distortion risk in volume output.
Feedstock batch variation: Powder batch‑to‑batch differences can impact molding flow, green‑part strength and final sintered properties without proper monitoring.
Undefined acceptance criteria: Tolerance, hardness, magnetism, salt‑spray test requirements are only finalized after mass‑production starts, creating repeated re‑negotiation and project delays.
Key Challenge Summary
The biggest risk for custom MIM projects lies in assuming prototype performance will automatically translate into stable mass‑production output. Every critical dimension, material property and inspection rule needs formal validation before full‑scale manufacturing kick‑off.
The Complete Custom MIM Solution Workflow
After receiving customer 2D drawings and 3D CAD files, a qualified MIM manufacturer executes a multi‑gate development workflow before mass‑production release:
- Pre‑tooling DFM & material feasibility assessmentReview geometry, wall thickness, undercuts, tolerance targets, working‑environment requirements and annual volume. Recommend suitable MIM alloy grade (304L, 316L,17‑4PH,440C, bronze or special non‑ferrous alloys), select water‑atomized / gas‑atomized powder and flag sinter‑distortion risks. Deliver DFM optimization suggestions without changing core product functions.
- Mold design & tool fabricationImplement sinter‑shrinkage compensation for mold cavity, optimize gate‑runner layout, design proper sinter‑support structure according to part geometry.
- Prototype sampling & first‑article validationComplete injection molding, debinding, vacuum sintering and required post‑treatments. Perform full dimensional measurement, mechanical‑property testing, surface‑quality inspection and assembly fit‑check. Document all process parameters.
- Process‑parameter locking for mass‑productionRun pilot production batches simulating real‑world furnace loading, heat‑treatment cycles and post‑processing workflows. Adjust sintering temperature, holding‑time and atmosphere parameters to stabilize shrinkage, hardness and density. Lock down final production specifications.
- Serial mass‑production with in‑process quality gatesImplement periodic furnace‑batch sampling, critical‑dimension monitoring, material‑traceability management, and intermediate inspection to maintain consistency batch‑to‑batch.
- Secondary operations & final inspectionSecondary‑CNC sizing, heat‑treatment, passivation, sandblasting, PVD‑coating or laser marking are performed according to requirements. Full final inspection and test reports are issued before shipment.
Core solution principle: Prototype sampling is only the validation phase. Real MIM success comes from locked‑in, repeatable manufacturing parameters rather than just good‑looking individual samples.
Core MIM Technical Capabilities for Custom Components
Broad Material Portfolio
Support a full spectrum of MIM alloys: austenitic stainless steel (304L / 316L), precipitation‑hardening 17‑4PH, martensitic 440C, iron‑base alloys, sintered bronze, titanium and controlled‑expansion special alloys (Kovar / Invar). Select powder type matched to corrosion, hardness, wear‑resistance targets and project budget.
Tolerance & Dimensional Performance
As‑sintered typical tolerance: ±0.03‑0.05 mm. Tighter critical features can be achieved via secondary CNC sizing after sintering and heat‑treatment. Sinter‑shrinkage compensation is pre‑calculated in mold design.
Comprehensive Post‑Processing Options
Offer heat‑treatment (aging, quenching‑tempering), CNC secondary sizing, passivation, electropolishing, sandblasting, PVD coating, laser marking and other surface finishing workflows to satisfy cosmetic and functional requirements.
Strict Multi‑Stage Quality‑Control
DFM drawing review before tool investment
First‑article inspection report for prototype validation
In‑batch process monitoring during sintering and heat‑treatment
CMM dimension measurement, hardness, density and corrosion‑performance testing
Complete material‑batch traceability documentation
Harbermetal: Your Trusted mim Parts Partner In China
Many customers receive nice‑looking MIM prototype samples, only to encounter high scrap rates and dimensional drift once they move to mass‑production. You do not need to waste multiple tooling‑revision cycles to solve scaling‑up pain points. Send your CAD drawings and functional requirements to Harbermetal. Our engineering team carries out full‑phase DFM review, prototype validation and pilot‑batch process locking before mass‑production, helping you smoothly transition from custom MIM prototypes to stable serial‑volume output.
Harber Industrial Limited (Harbermetal) is an ISO‑certified full‑chain Chinese MIM & powder‑metallurgy manufacturer with more than 10‑years of custom‑MIM project experience. We are not a trading intermediary, owning complete in‑house workflow covering feedstock evaluation, mold development, metal injection molding, debinding, precision vacuum sintering, dedicated heat‑treatment, secondary‑CNC sizing and diversified surface finishing.
Our engineering team guides customers through the whole custom‑MIM journey: starting from drawing review and material selection, through prototype sampling, pilot‑batch process tuning, all the way to stable high‑volume manufacturing. We explicitly separate prototype sampling from mass‑production validation work, helping global customers avoid the common trap of “good samples, bad mass‑batches”.
We deliver custom MIM components serving automotive, consumer‑electronics, power‑tool, lock‑security and medical‑auxiliary hardware sectors. Full first‑article inspection documents, hardness / density / salt‑spray test reports and batch‑traceability records are available upon request. Whether you need small‑quantity prototype validation or 100 000+ unit annual serial‑production, Harbermetal balances technical performance, batch‑consistency and competitive total‑project‑cost.
Contact informationEmail: sales@harber‑mim.comTel: +86 0769‑82389116
Benefits of Working on Custom MIM Components With Harbermetal
End‑to‑End Project Management
One‑on‑one technical support throughout DFM analysis, sampling, pilot run and mass‑production phases. Clear milestone deliverables keep your project schedule predictable.
Multi‑Alloy Processing Expertise
Versatile manufacturing capacity for stainless‑steel, iron‑base, bronze and special non‑ferrous MIM materials. Engineers give objective powder‑grade and material‑trade‑off advice.
Rigorous Prototype‑to‑Volume Validation Mechanism
We never treat prototype performance as direct mass‑production approval. Pilot‑batch simulation under real‑production furnace‑loading conditions locks process parameters to mitigate scaling‑up risks.
Full In‑House Production Chain
No heavy reliance on external subcontractors for sintering and heat‑treatment. Better control over lead‑time, quality consistency and intellectual‑property protection.
Complete Inspection & Traceability
First‑article reports, batch test‑records, material certificates support OEM quality‑system requirements for global market access.

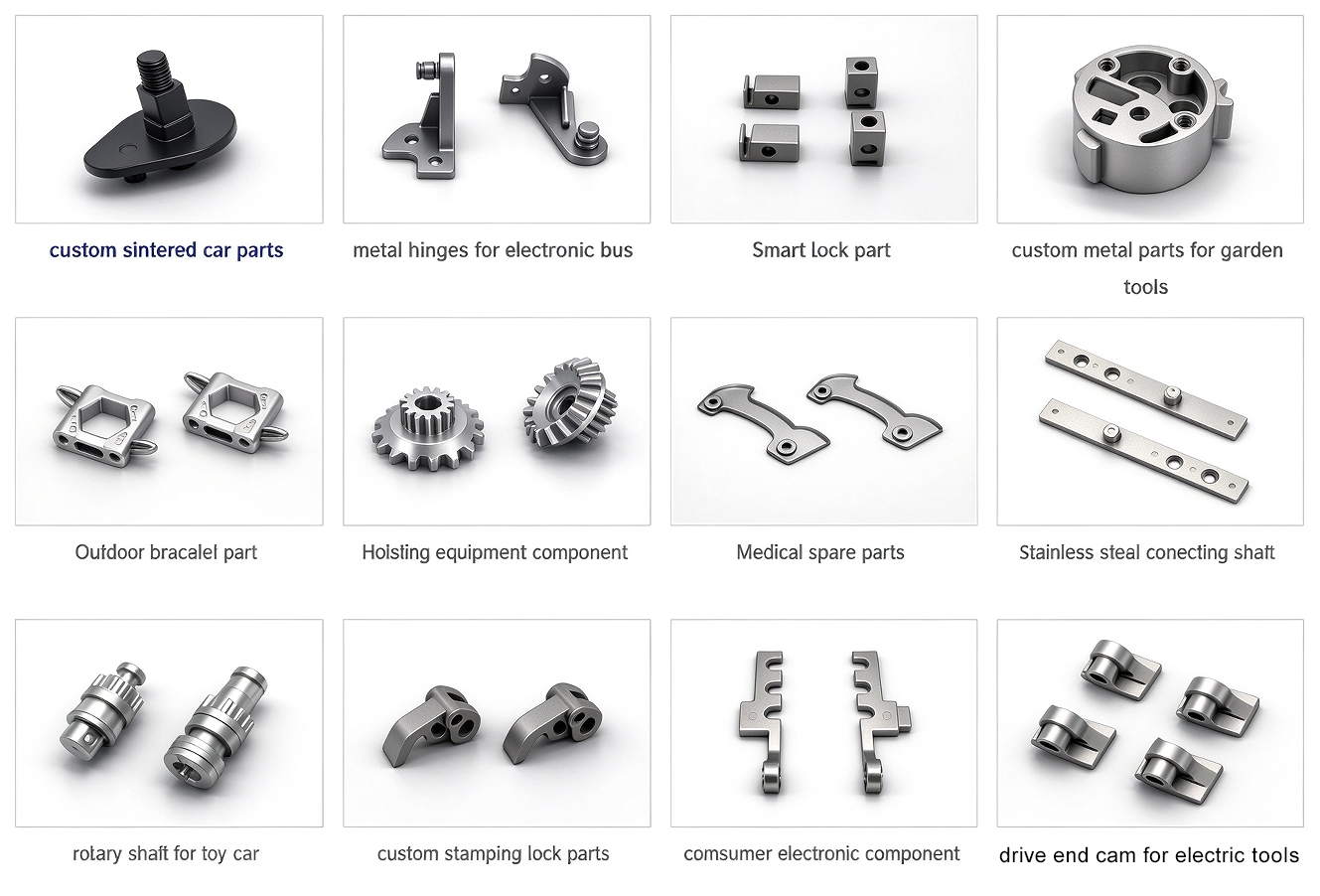

Typical Application Industries for Custom MIM Components
Automotive MIM Parts
High‑strength miniature sensor components, locking latches, small actuator mechanical parts requiring stable fatigue performance.
Consumer Electronics & Wearables
Miniature complex structural brackets, latch assemblies and connector hardware with strict dimensional and cosmetic requirements.
Power‑Tool & Security Lock Hardware
High‑wear micro‑gears, sliding latch components, high‑load mechanical inserts made from 17‑4PH or 440C MIM.
Medical‑Auxiliary Equipment Parts
Corrosion‑resistant miniature structural hardware for non‑implant medical devices.
Frequently Asked Questions About Custom MIM Components: Prototype to Mass‑Production
Q: Can MIM prototype samples directly represent mass‑production quality?A: Not completely. Prototype samples are usually produced under small‑quantity lab‑furnace conditions. Pilot‑batch testing simulating real mass‑production loading is required to validate process stability.
Q: What is the typical timeline for custom MIM projects from drawing to mass‑production release?A: Depends on part complexity: normally 12‑18 weeks including DFM review, mold‑making, prototype sampling, pilot‑batch validation and first‑article approval. Expedited options are available upon request.
Q: What information should I provide for custom MIM quotation?A: 2D drawing with GD&T tolerances, STEP / IGES 3D file, target material grade, service‑environment requirements, surface‑finish & heat‑treatment specs, and estimated annual production volume.
Q: What is the economical volume threshold for MIM custom components?A: Generally, MIM shows obvious cost‑advantages starting from 10 000‑20 000 pieces per year. For very low‑volume projects, CNC‑machining may be the more practical alternative.
